10kn, box size: 50cm*40cm*27cm, 50 pieces per piece
Product Catalog
Contact Us
Product Features
Application Scenarios

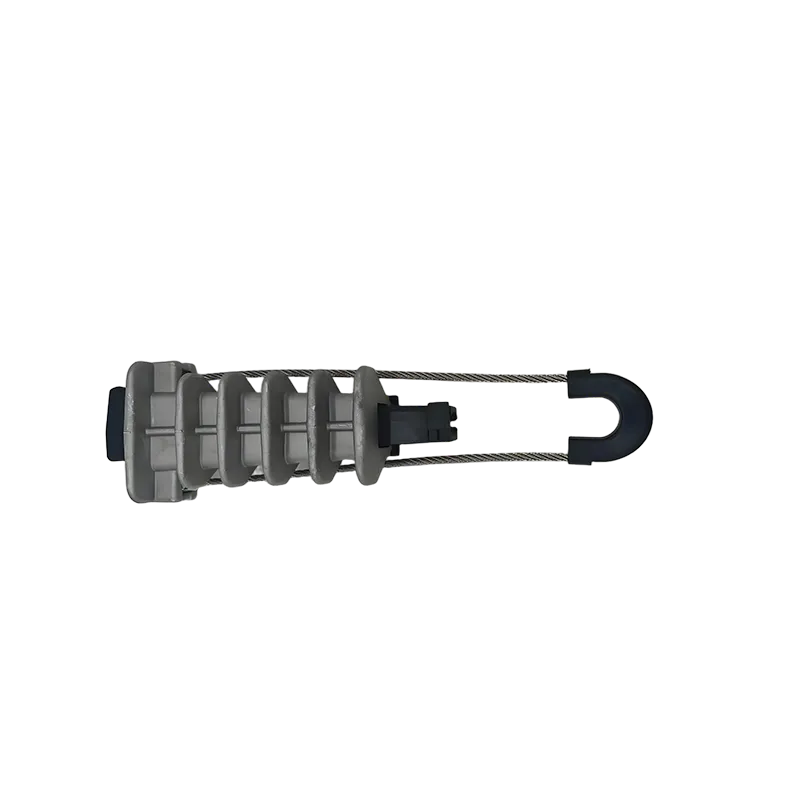

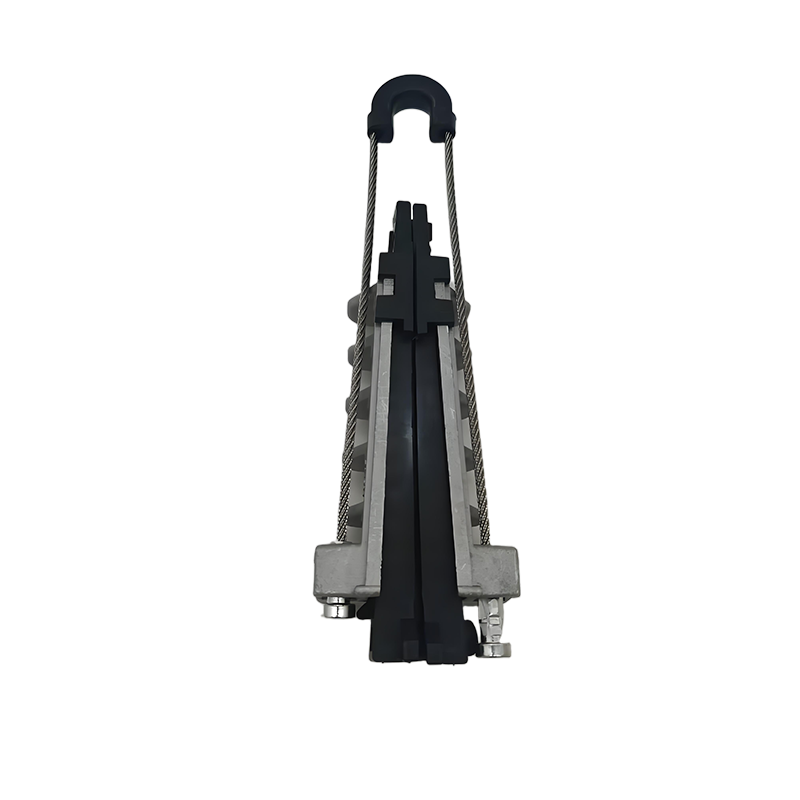

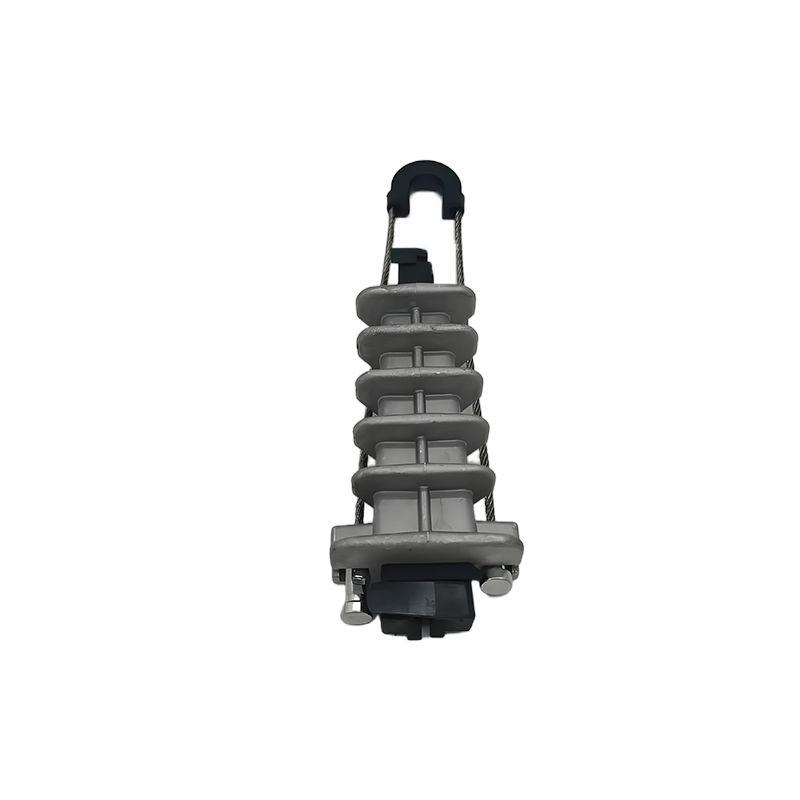

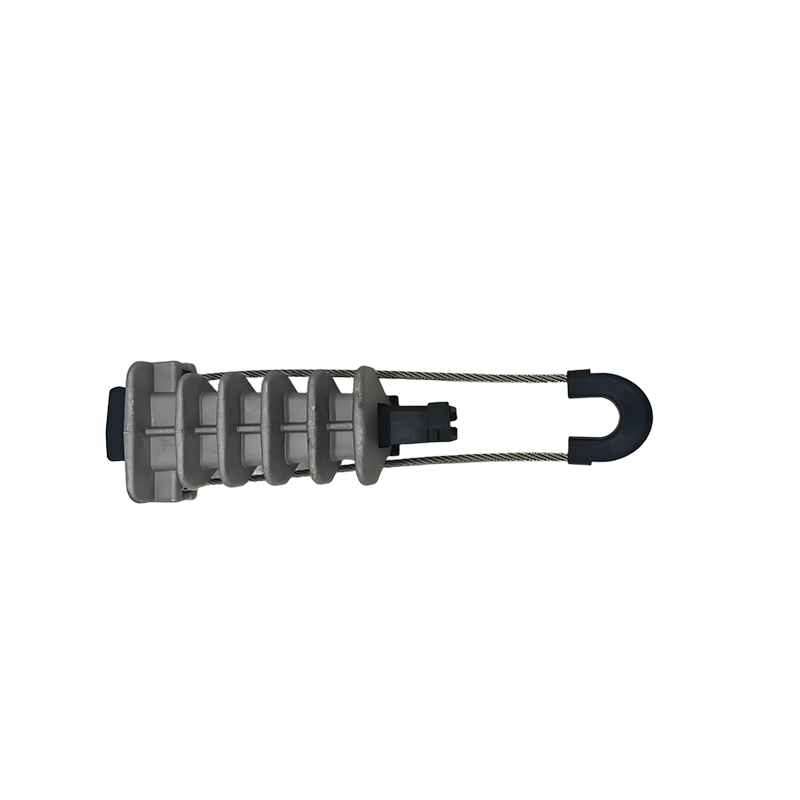

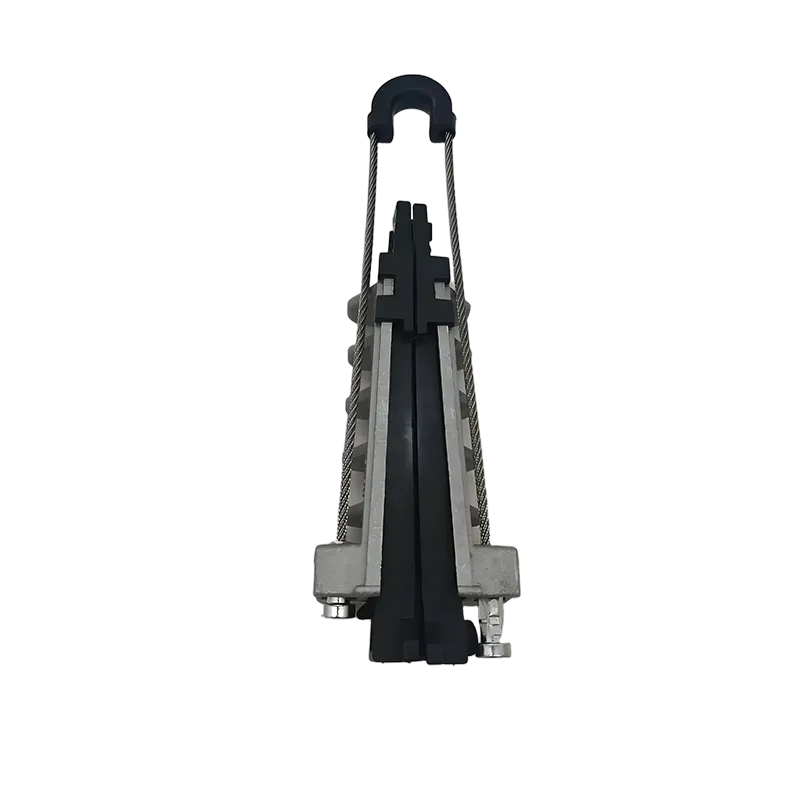

It is specially designed for the optical cable overhead pulling system, and is used to firmly fix the suspension wire or steel strand of the self-supporting optical cable on the supporting structures such as the tension tower, corner tower, and terminal tower, so as to realize the tension anchoring and positioning of the optical cable. It is suitable for outdoor overhead wiring scenes such as ADSS optical cable and self-supporting optical cable, and ensures the stable laying of optical cable lines under different terrain and climatic conditions, and avoids the displacement and loosening of optical cables due to changes in wind force and tension.
Main body: High-strength engineering plastics are preferred, with strong weather resistance and good insulation properties, which can resist outdoor ultraviolet rays, high and low temperatures, humidity and other environmental erosion;
Pull ring: Stainless steel is used, which is anti-corrosion and tensile, ensuring anchor strength and service life;
Wedge block: Wear-resistant and high-strength materials are selected, which are precisely matched with the main wedge cavity to achieve reliable self-locking.
Preparation: Confirm the type of optical cable (the self-supporting type needs to separate the suspension wire) and specifications, and check that the fixture has no damage and all parts are complete;
Threading and fixing: insert the optical cable suspension wire into the wire inlet of the wedge-shaped clamp, straighten it along the wedge-shaped cavity, and ensure that the suspension wire fits the wedge;
Wedge locking: Use a special tool (or press manually) to push the wedge block so that the hanging wire and the wedge cavity are tightly engaged. If there is no slippage when pulling lightly, the locking is complete.
Pull ring anchoring: Hang the top pull ring into the preset tension hook, insulator string and other hardware on the pole tower, check the connection firmness, and complete the installation.
