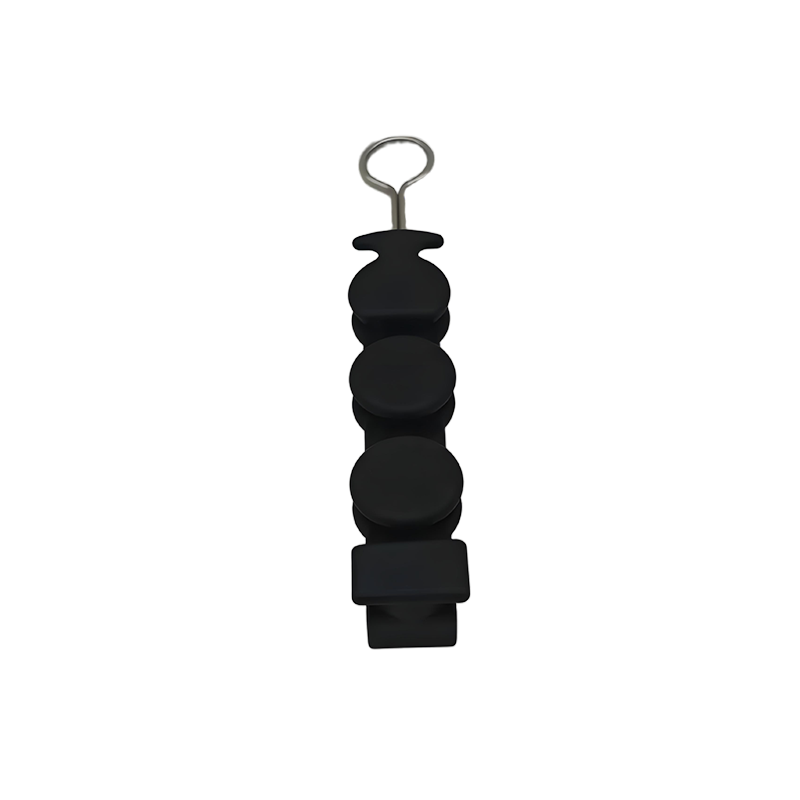

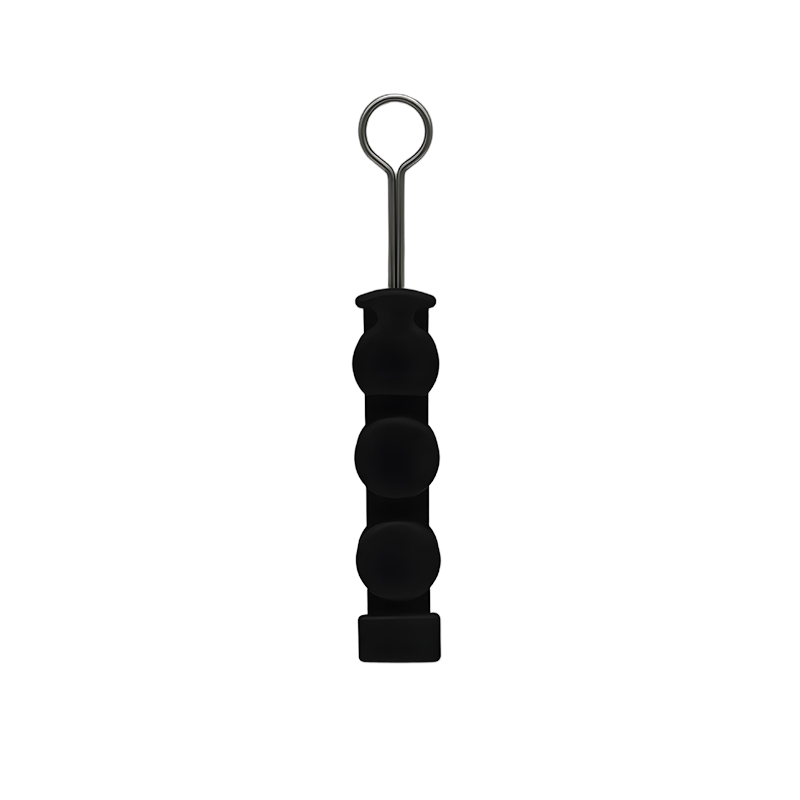

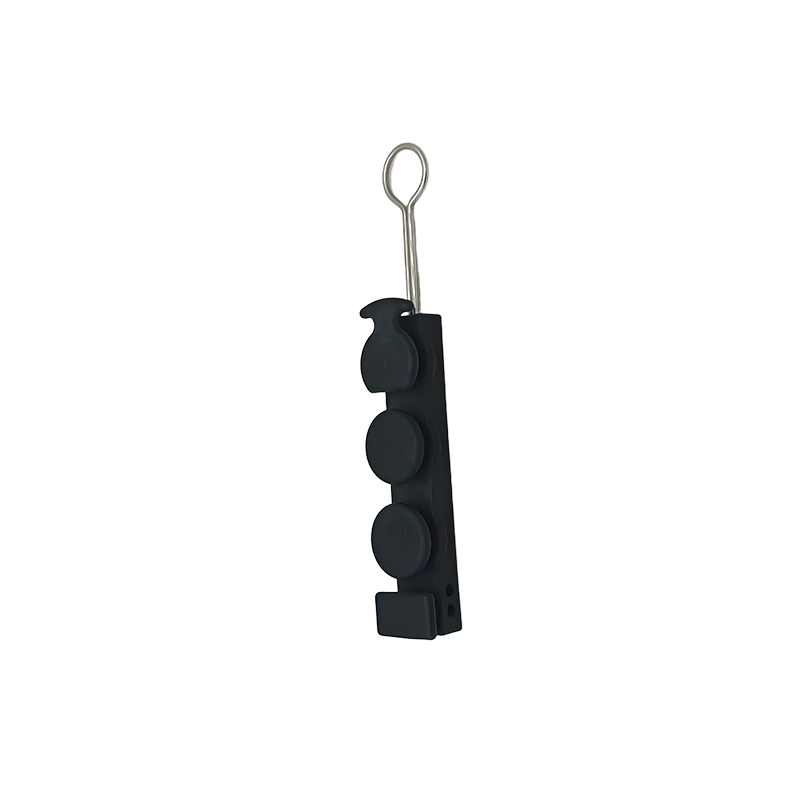

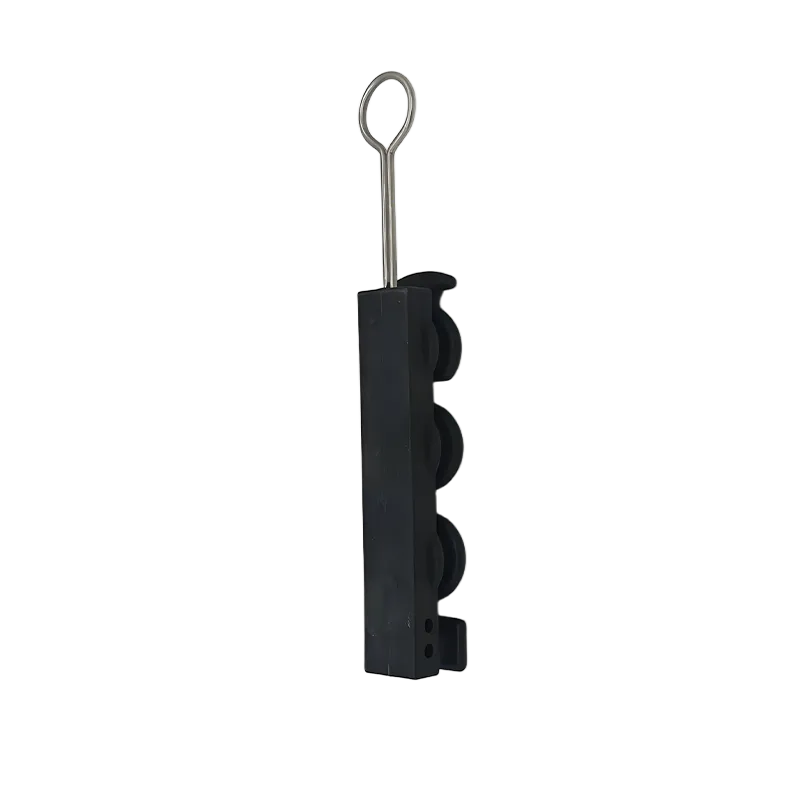

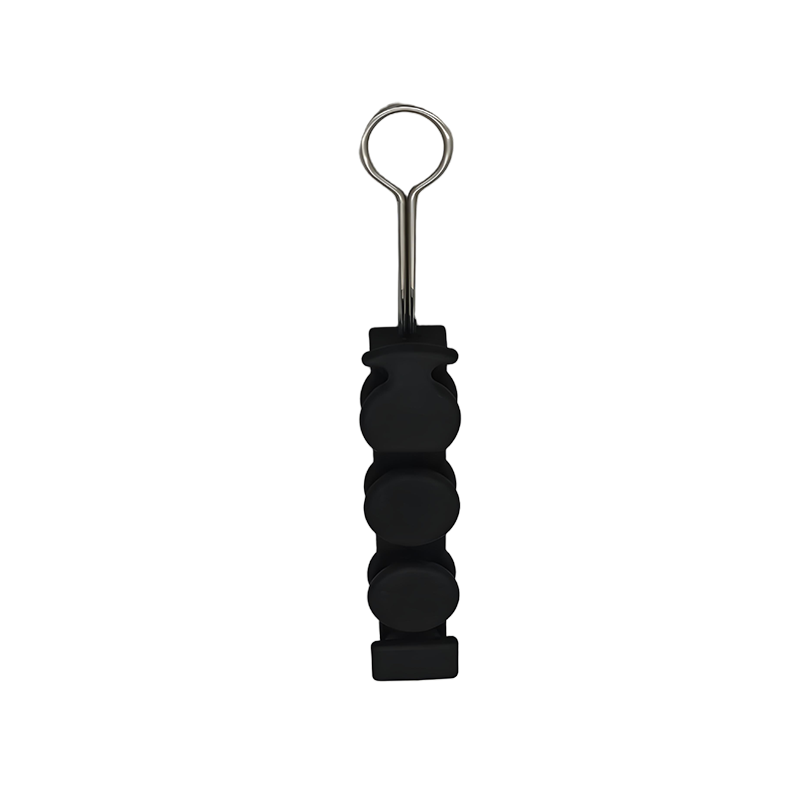

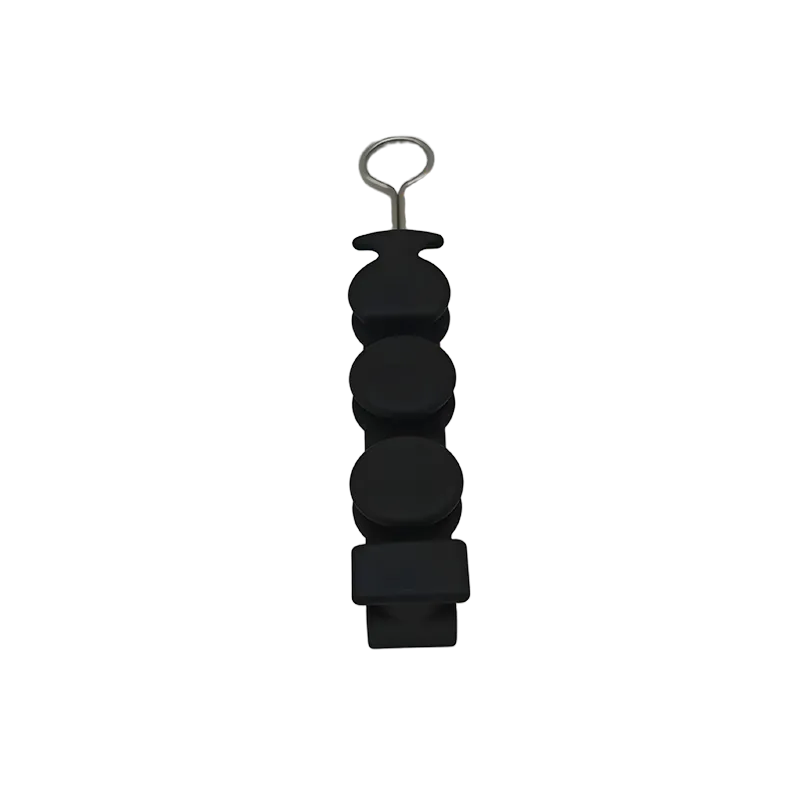

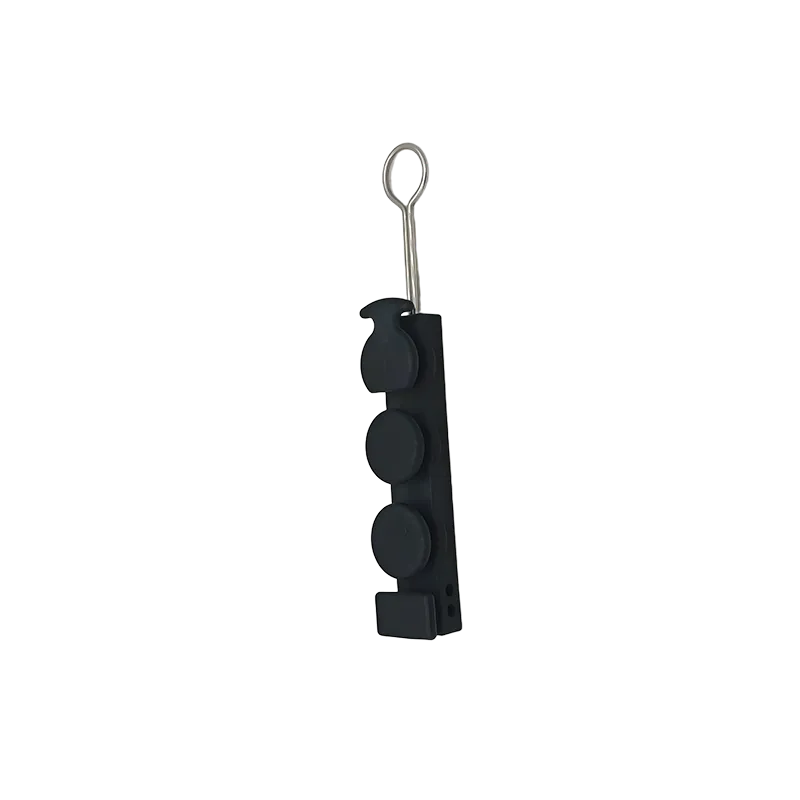

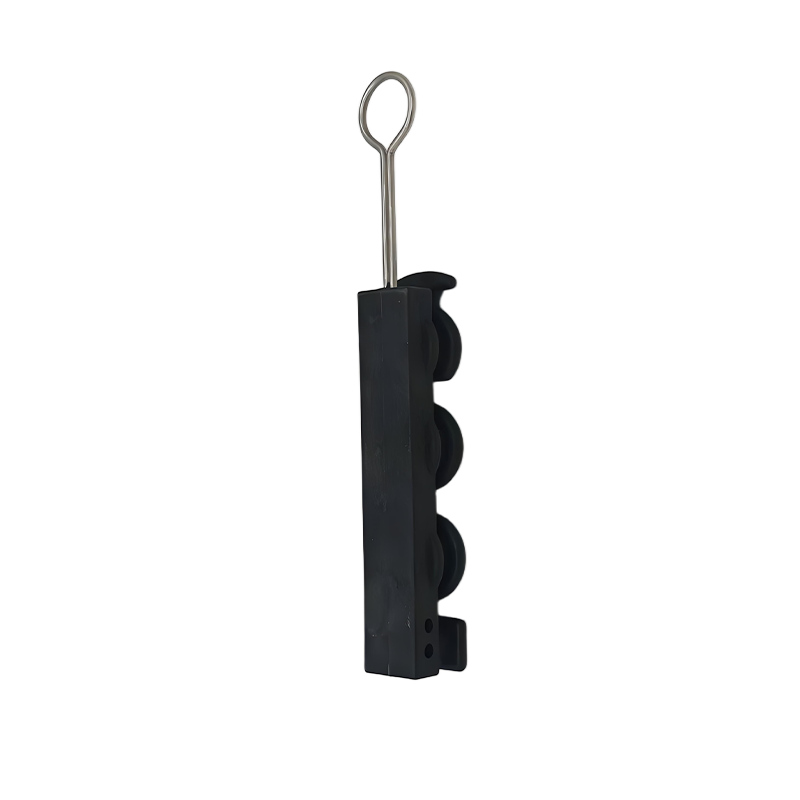

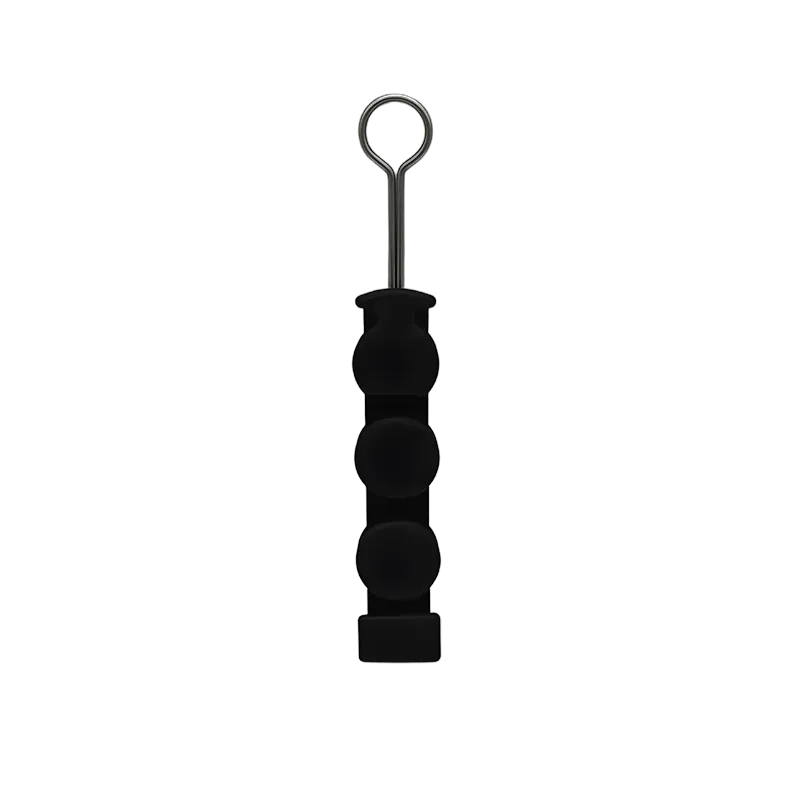

It is specially designed for butterfly optical cable overhead wiring scenarios and is used to bind the suspension wire of self-supporting butterfly optical cables. By cooperating with supporting devices such as ring hooks and tight hoop hooks, the optical cables are pulled and fixed. It is suitable for FTTH (fiber to the home) outdoor overhead wiring system to ensure the stable laying of butterfly optical cables in pole lines, walls and other environments, avoid optical cable shaking and displacement, and ensure stable signal transmission.
Weather-resistant materials are preferred, and plastic parts are made of ABS, which is resistant to high and low temperatures and aging, and can adapt to outdoor natural environments (temperature cycles, wind swings, etc.); metal hooks are made of stainless steel wire, which is rust-proof and deformation-resistant to ensure long-term reliability.
Separation suspension wire: Take the self-supporting butterfly optical cable and separate the load-bearing suspension wire;
Winding and fixing: Wind the load-bearing suspension wire on the fixed seat in an S-shaped path, and circle it through the H-shaped slot (2-3 circles are recommended), and use the winding cone to maintain the tension;
Hanging support parts: Hang the hook ring into the pre-installed ring hook (wall), tight hook (pole) and other support parts to check whether it is firmly fixed;
Finishing treatment: Both ends of the optical cable and the suspension wire can be wrapped with insulating tape to enhance protection.
